Equipment Fine Hydraulic Breaker Road Concrete Breaker
  • Equipment Fine Hydraulic Breaker Road Concrete Breaker
  • Equipment Fine Hydraulic Breaker Road Concrete Breaker
  • Equipment Fine Hydraulic Breaker Road Concrete Breaker
  • Equipment Fine Hydraulic Breaker Road Concrete Breaker
  • Equipment Fine Hydraulic Breaker Road Concrete Breaker
  • Equipment Fine Hydraulic Breaker Road Concrete Breaker
Unit Price: 1000~10000 USD
Min. Order: 1 Set/Sets
Basic Info
Product Description
Equipment Fine Hydraulic Breaker Road Concrete BreakerWhat is Hydraulic Hammer

Hydraulic hammer is a one type of Excavator attachments which is fitted on excavators replacing the buckets. It is used for rock breaking in quarry , or concrete breaking in building, bridge , road or other instructure construction. Some special functional hydraulic rock breakers are also used underwater with underwater protecting and air compressor system. And some Others can be used in stell mills to breaking the steel slags in the stoves.

How does excavator mounted hydraulic rock breaker work?

Rock breaker is driven by hydraulic oil pressure. The working princple is changing the hydraulic pressure energy to mechanical energy. All the hydraulic rock breakers have in/out hose port which is connect to excavator main valve block by hydraulic hoses. While it working , the hydraulic oil go through the breaker cylinder, then the hydraulic oil pressure push the piston move up and down , the piston move direction is controlled through the valve. Every movement down, the piston will impact the rock breaker tools, then the tools will breaking the objects. it is like a human is breaking a rock with a hammer hiting the chisel tool.

Hydraulic Rock Breaker Types:
In different countries, It has different user habits to choose different type excavator rock breakers. Generally, we have three types rock breakers which can cover most of users request. According to the installation way on excavators. They are side type installation rock breakers, top type installation hydraulic rock breaker and silent type rock Breaker Hammer

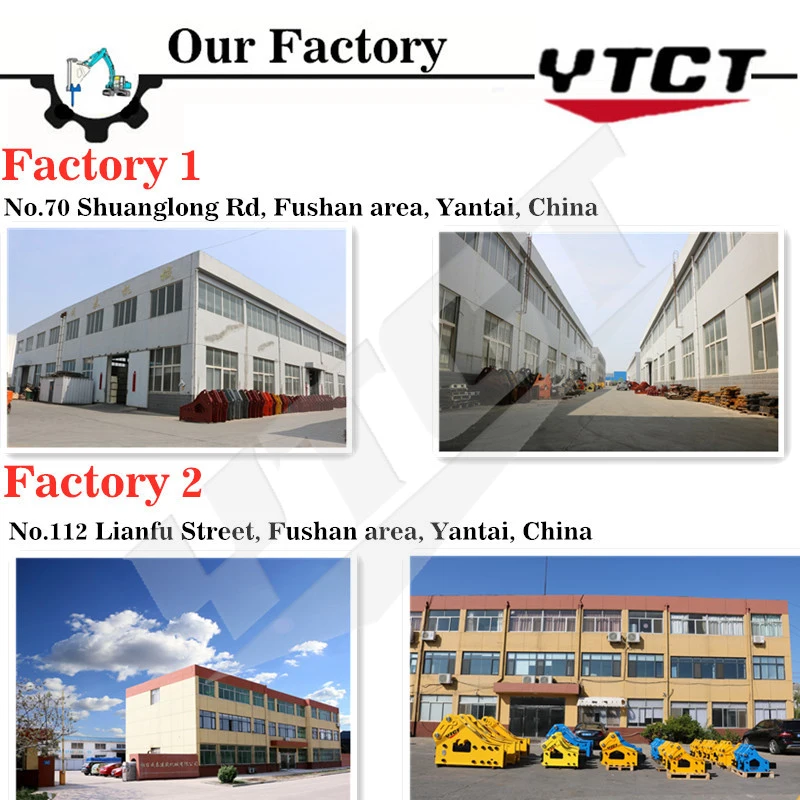

****OUR FACTORY

***we are a factory in yantai city,shandong province,China

specialized in manufacturing Hydraulic Breaker ,quick hitch ,ripper ,etc for excavator attachment .
OUR FACTORYIN YANTAI CITY,SHANDONG PROVINCE ,CHINA
OUR PRODUCTSPECAILIZED IN MANUFACTURE HYDRAULIC HAMMER
MOQ1 SET
OEMYES.BECAUSE WE ARE A FACTORY
COLORANY COLOR COULD DO FOR YOU
PAYMENT30% DEPOSIT ,BALANCE BEFORE SHIPPING ,T/T OR L/C
DELIVERY DATE1-50 SET 1-25DAYS.
SHIPPINGBY SEA O BY AIR
Feedback from Clients
Equipment Fine Hydraulic Breaker Road Concrete Breaker
Equipment Fine Hydraulic Breaker Road Concrete Breaker* Yantai Factory Direct Price
* Small order is welcome, MOQ 1 set
* Nice quality, one year warranty
* Chisel diameter from 35-210mm
* Breaker suit any brand 0.5-70 ton excavator
* Fit to machine as below:
Equipment Fine Hydraulic Breaker Road Concrete BreakerWhat brand excavtors YTCT hydraulic hammer can fit and suit to

YTCT Hydraulic breaker hammer can suit to any brands of excavators if they have the right connection pins and installation width.
YTCT is also an OEM for some big brand hydraulic breakers or excavators.
The suitable excavator brands : CAT, Komatsu, Hitachi,JohnDear,Case,Kobelco,IHI,KATO,SANY,Doosan,
Hyundai,Pindad,XCMG,SDLG,VOLVO,EUROCOMACH,JCB.....
YTCT HYDRAULIC BREAKER HAMMER:
Equipment Fine Hydraulic Breaker Road Concrete BreakerEquipment Fine Hydraulic Breaker Road Concrete Breaker
MODE NUMBERCHISEL DIAMETERSUIT EXCAVATOR (WEIGHT)BRAND OF EXCAVATORHYDRAULIC OIL FLOWHYDRAULIC PRESSUREBLOW FREQUENCYmain body WEIGHTHOSE DIAMETERACCUMALATOR PRESSURE
YTCTMMTON L/MINKG/CM2BMPKGINCHKG/CM2
YTCT350.5-0.8ANY BRAND10--2090-120800-1400401/2/
YTCT10400.8-2.515-2590-120800-1400531/2/
YTCT20451.2-3.020-3090-120700-1200711/2/
YTCT30532.5-4.525-5090-120600-1100891/2/
YTCT40684--740-70110-140500-9001561/2/
YTCT43756--950-90120-150400-8002141/2/
YTCT45857--1460-100130-160400-8002821/2/
YTCT5010010--1580-110150-170350-7004793/4/
YTCT7013516-25130-150160-180400-8008501/
YTCT8114018-26120-180160-180350-5009201/
YTCT81A14018-26120-180160-180350-500956160
YTCT10015027-35150-190160-180350-7002218160
YTCT12115528-35180-240160-180300-4502577160
YTCT13116530-40200-260160-180250-4001442160
YTCT14016530-40200-270160-180250-3801590160
YTCT15117535-40210-290160-180200-35019255/460
YTCT151L17535-45220-270200-240200-30019335/460
YTCT18518540-55220-270180-220250-32022955/460
YTCT19019045-60220-290180-220180-20025265/460
YTCT19519545-60220-290180-220180-20026005/460

Side type rock breaker features:
1.Side type and opening bracket design, easy for maintenance

2.Simple body structure design,the parts can exchange quickly, lower cost

3.Flexible operation like a ripper with wide vision

4.The most higher effiency design but lowest cost

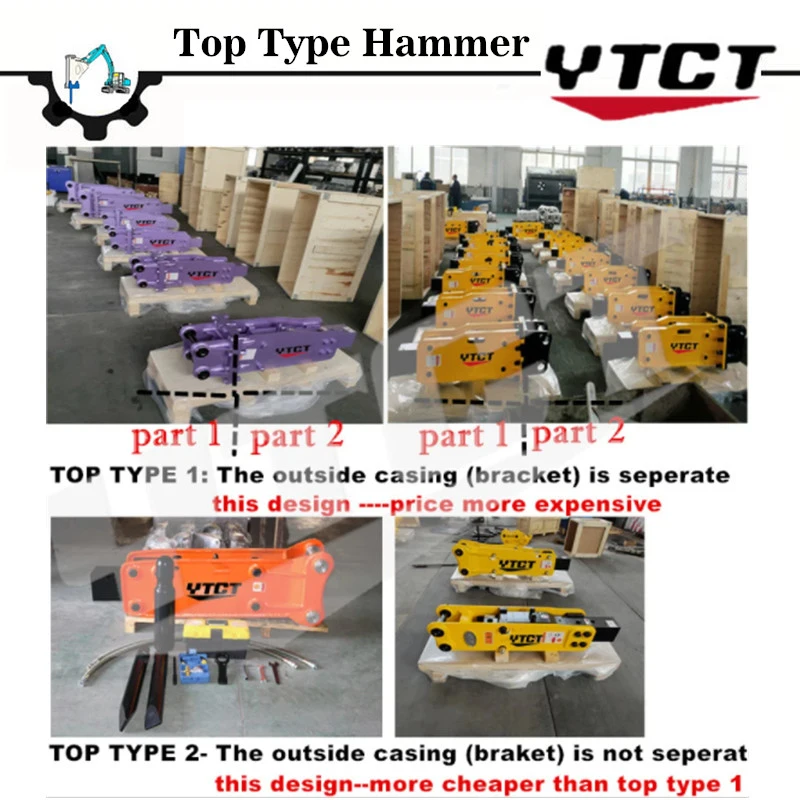

After reading above different type excavator breakers features, now you can know how to choose the right type rock breaker for you excavators.Equipment Fine Hydraulic Breaker Road Concrete BreakerTop type hydraulic breakerTop and open design, easy for maintenance
2.Simple design, parts can exchanging quickly, economic cost
3.Longer operation range for distance working project

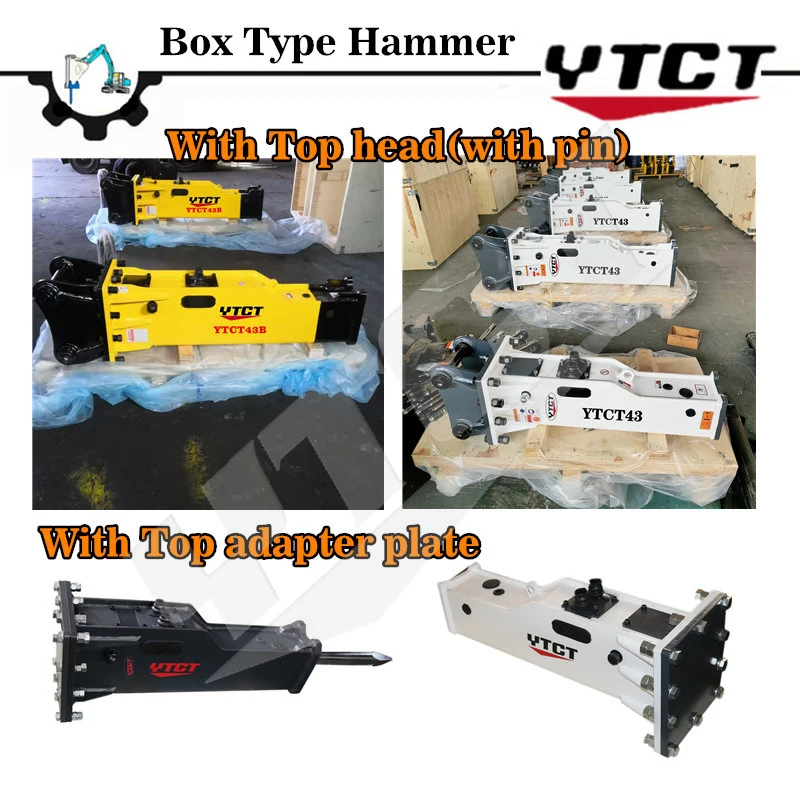

4.More powerful cause of vertical body designEquipment Fine Hydraulic Breaker Road Concrete BreakerBox Type Hydraulic Hammer1.Design with cushion rubber shock absorption system

2.Lower noise for city projects, comfortatble operation

3.Longer operation rang for distance working

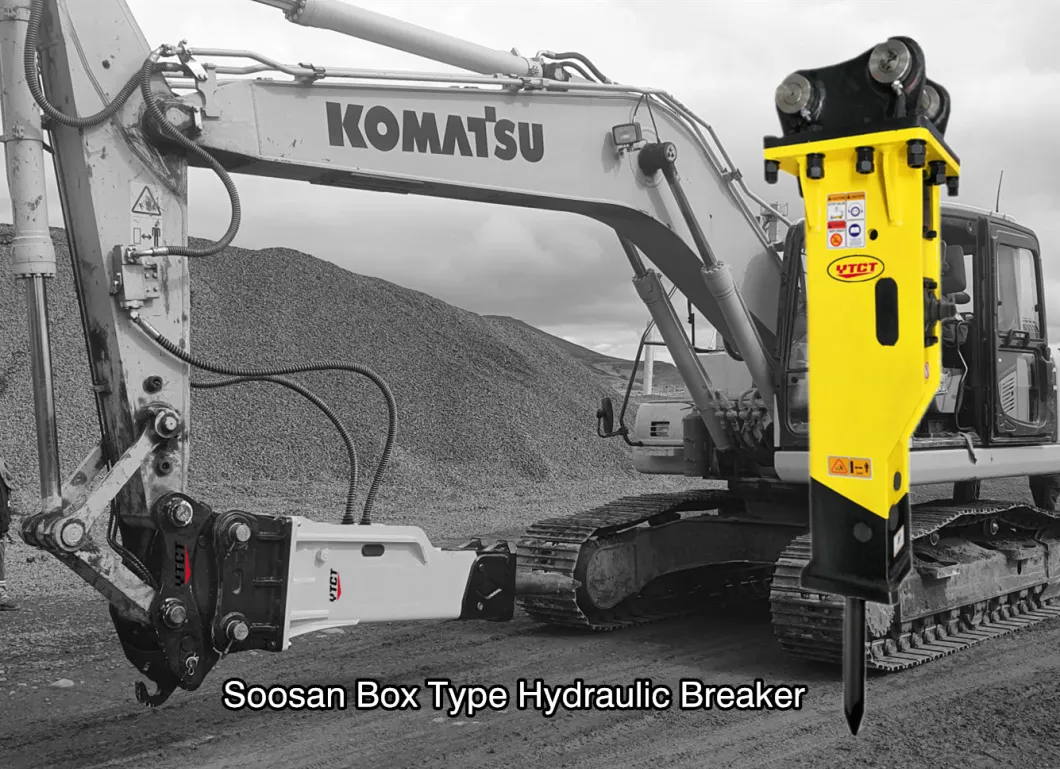

4.Easy maintenance design with quality wear-resisting material for longer working lifeEquipment Fine Hydraulic Breaker Road Concrete BreakerWhat is the difference among side type , box type and top type rock breakers?
For Side type, the installation pins are on the side of the breaker.

For Top type , the installation pins are on the top of the rock breaker.

And for box type, the rock breaker bracket is full sealed like a box.

And it equiped with rubber cushion inside of the bracket to keep lower noise.
So it is also called silent type rock breaker.

The installation pins are also on the top for silent type rock breaker, same as top type installation way on the excavtors.

Both side type and top type breakers are with opening bracket, which is easy for maintenace and parts exchanging.

But for box type rock breaker, it has to open the box and move out the main body to do maintenance job.
 The best hydraulic rock breaker brand in China:
There are too many rock breaker brands all overy the world like Atlas, Rammer,Indeco,Soosan, Furukawa, NPK in different countries from China ,Europe,USA, JAPAN,Korea and Turkey. If you are thinking to choose a competitive brand rock breaker for your excavators,YTCT brand is your first choice from China which has the best user reviews and reputation amont their dealers and users, which is also a main OEM manufacturer for many big brand excavators

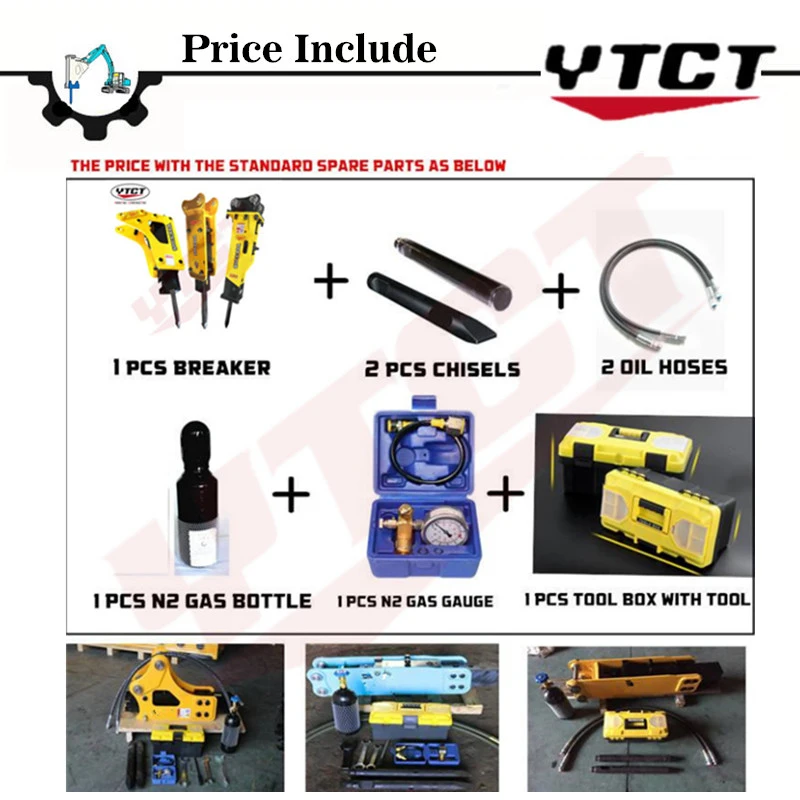

ALL THE PRICE WITH SPARE PARTS AS BELOW:

1.all the price with wooden box pacakage .
2.all the price with the standard spare parts.
** -----2 chisels
** -----2 oil tube
** -----1 N2 gas bottle.
** -----1 tool box
** -----1 N2 pressure gaugeEquipment Fine Hydraulic Breaker Road Concrete BreakerPACKING AND SHIPPING1.Inner is stretch film, outside is export plywood case or as customer's request2.Delivery time:Usually 3-7days (1-5sets) after down payment.3..We can arrange ocean or air transportation according to your request from any port of China.Equipment Fine Hydraulic Breaker Road Concrete BreakerHOW TO CHOOSE OUR BREAKER ?

1. PLEASE LET US KNOW YOUR EXCAVATOR MODEL NUMBER OR WEIGHT OF MACHINE.

2.PLEASE LET US KNOW WHAT COLOR DO YOU NEED FOR BREAKER .

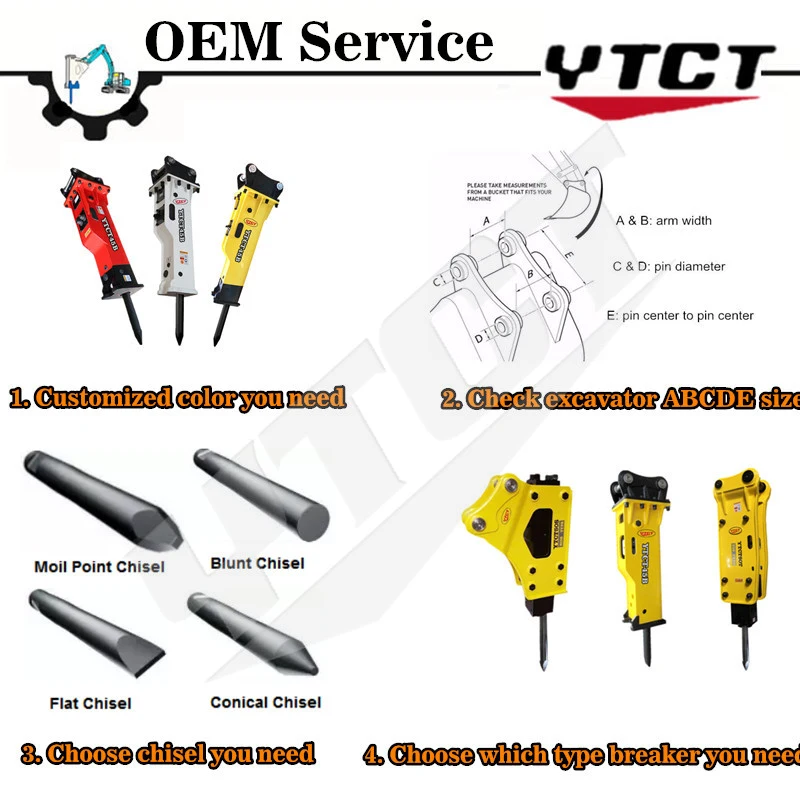

3.PLEASE CHECK THE ABCDE SIZE FOR US ,ARM EAR WIDTH ,PIN DIAMETER AND PIN CENTER TO PIN CENTER SIZE .

4.CHOOSE WHAT TYPE OF HYDRAULIC BREAKRE DO YOU NEED ,THANKS.How to install the breaker to excavators?

If you want to install hydraulic breaker to your excavator, you need to check some dimensions of your excavator. We will make the breaker dimensions matching to your excavators, so that you can install immediately while you get the breaker from us.Please check following dimensions in the picture.
Pin Hole Diameters: C D
Arm and Link Width: A B
Note: To most of excavators A=B, C=D
but some excavators or backhoes have different A,B,C,D
If you want to add quick coupler to exchange the attachments quickly.You aslo need to check the pins distance too.Please check following picture.
Pins Distance E.Equipment Fine Hydraulic Breaker Road Concrete BreakerNEED FREE CATALOG OR MORE PRICE,SEND ME INQUIRY AS BELOW.

MISS EVA WILL REPLY SOON,THANKS.hydraulic breakerrock breaker
breaker chisel
breaker hammer
Concrete Breaker
hydraulic breaker chisel
hydraulic breaker parts
YTCT breaker price
excavator breaker
hydraulic rock breaker
